Step Feeder
Suitable Screw Size:M2-M24
Step Feeder Mechanism Manufacturers Danikor is designed for feeding long bolts and screws.The Step Feeder Mechanism has four available models that meet various feeding needs, including screw air blowing type and pick-up type.The Step Feeder Mechanism has added richer extended functions, such as scanning code to open the cover, full material detection, special treatment of screw track with glue and oil, removal of abnormal screws such as flat and washer pads stuck in threads or missing rubber pads, air source pressure detection, level monitoring, three color lights, etc.
Request a Quote
Product Advantages
Low Screw jamming
? The Step Feeder Mechanism's structure has been upgraded and optimized to effectively reduce the risk of screw jamming. The jamming rate of standard screw is 50PPM, and the rate of screw with flat and washer is 200PPM；
? The Step Feeder Mechanism's vibration track, with its multi-faceted screening structure, avoids the crowding of multiple screws.
Clean
? No vibration source is not easy to generate debris, and the cleaning module dedusts again;
? Optional track cleaning.
Error-proofing
? Scan the code and open the cover;
? ± 1mm long and short screw detection and other extended function modules.
Reduce noise
? Special structure to reduce impact noise.

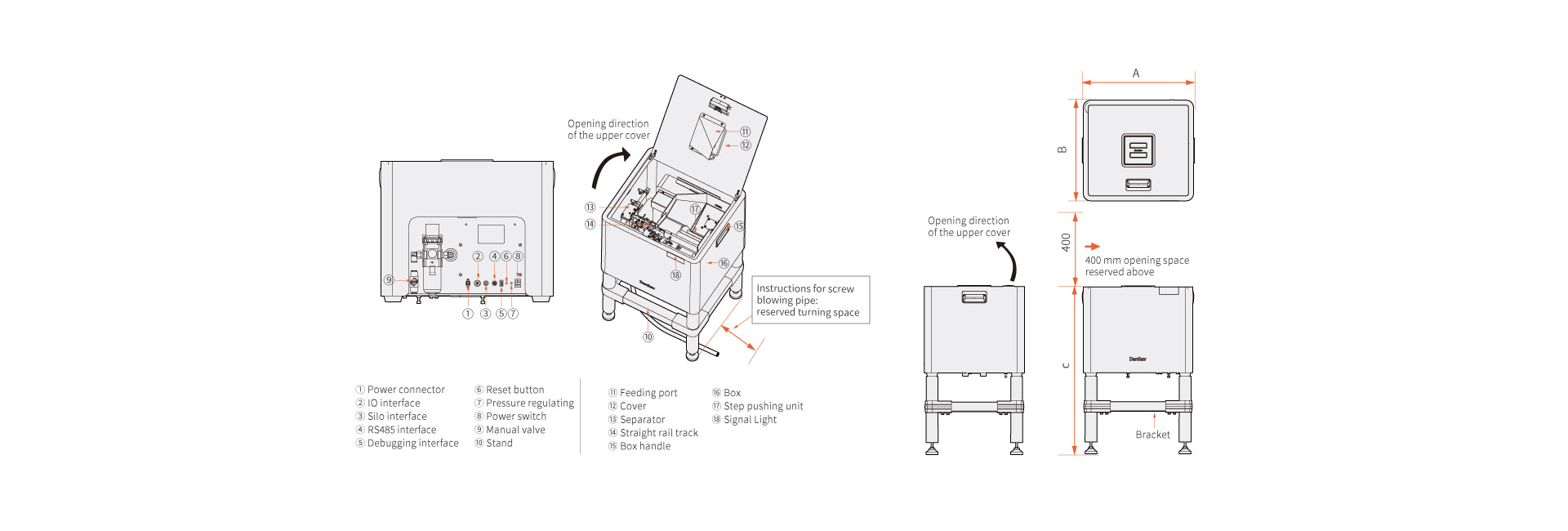

Product Structure

Product Parameters
Capacity /L Channel type Weight /kg Rated air pressure /Mpa Power source Rated power Air consumption m3/min Inlet pipe diameter /mm Noise value* （1m外）dB I/O line /m Power cord /m Blow screw tube /m
1.25 Single channel C1 38-60 0.6 Equipment voltage DC24V (guest supply voltage 220V/50Hz) 120W 0.25-0.3 10 75dB (excluding blowing sound of solenoid valve)  5 2 5/10
Dual channel C2 38-42  0.4-0.45
Single channel pickup P1  0.15-0.2  -
2 Single channel C1 80W   0.25-0.3  5/10
Dual channel C2  0.4-0.45
Single channel pickup P1  0.15-0.2  -
4 Single channel C1 170-175 240W  0.4-1 12 80dB (excluding blowing sound of solenoid valve) 5/10
Dual channel C2 175  0.55-0.75
Single channel pickup P1 170  0.3-0.45 -



Feeder-scope Of Application For Screws



Capacity /L Screw type Screw range length of screw /mm Maximum Cap Diameter/mm LDR
 1.25L Standard screw M3~M5

M3~M5:≤45

M6~M8:≤40

 5.5≤D≤15 1.3≤L/D≤7.5
Combination screw M6~M8 1.2≤L/D≤7.5
Standard screw M3~M4 1.7≤L/D≤7.5
Combination screw M5~M8 1.6≤L/D≤7.5
1.5L Standard screw M3~M5

M3~M5:≤45

M6~M10:≤60

 5.5≤D≤26 1.3≤L/D≤7.5
Combination screw M6~M10 1.2≤L/D≤7.5
Standard screw M3~M4 1.7≤L/D≤7.5
Combination screw M5~M10 1.6≤L/D≤7.5
4L Standard screw M4~M14

M4~M8:≤100

M10~M14:≤65

 12≤D≤27 1.25≤L/D≤10
Combination screw 1.6≤L/D≤10
Huge Standard screw M4~M24  L≤250 27≤D≤43 -
Combination screw
