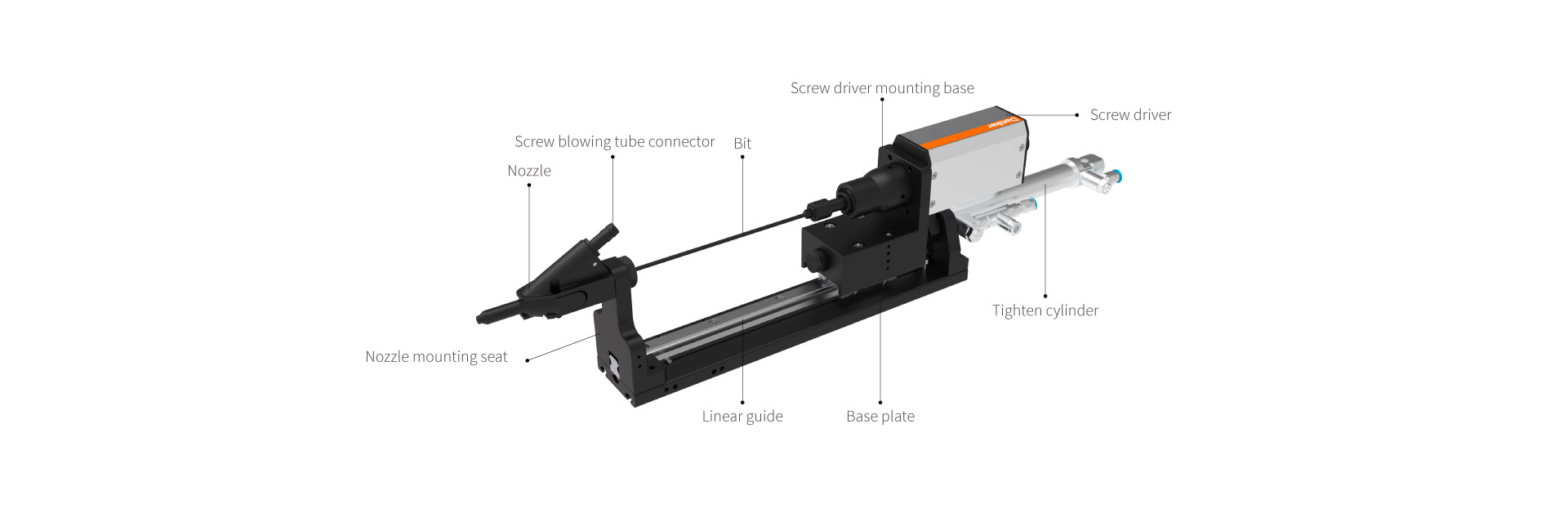

Traditional blow screw module system parameters
| Screw type | Nozzle type | Weight (excluding screw drivers and cables)/kg | Maximum cap diameter/mm | Torque range /Nm |
| Standard/Combination screw | Normal | 3.5~3.9 | 4~15 | 0.3~20 |
| Swivel Arm | 3~3.3 | |||
| Hexagon head | Normal | 3.7~4.5 | ||
| Swivel Arm | 3~4.5 |

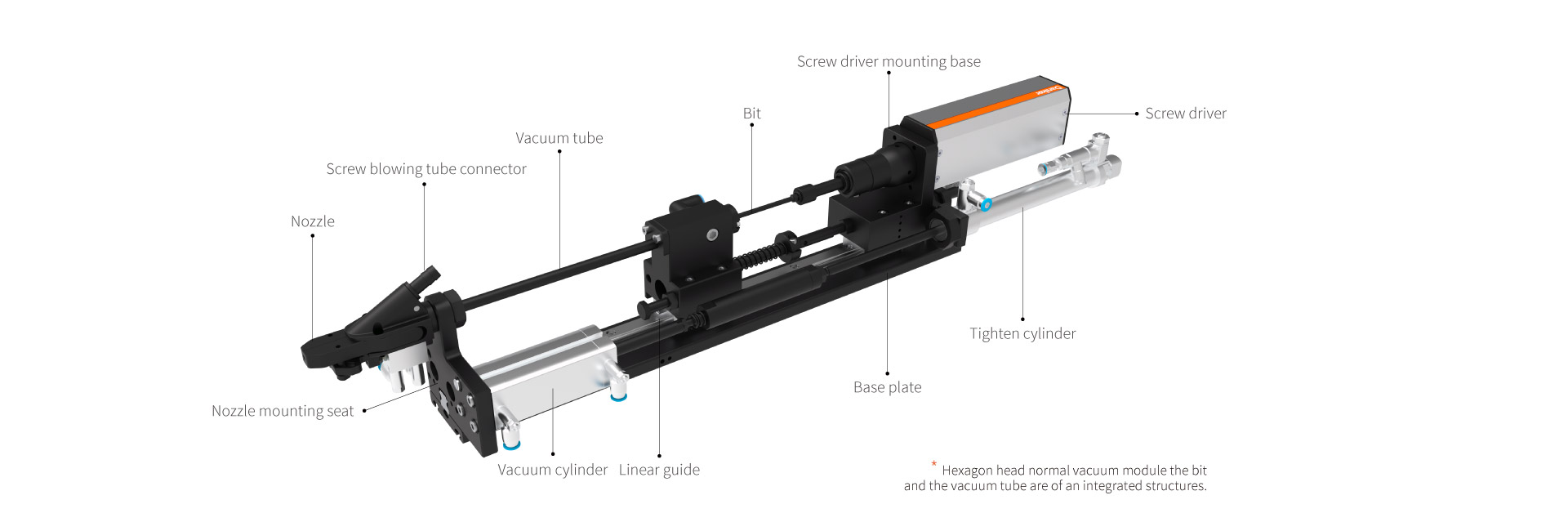

Normal Vacuum module system parameters
| Screw type | Nozzle type | Weight (excluding screw drivers and cables)/kg | Maximum cap diameter/mm | Torque range /Nm |
| Standard/Combination screw | Normal | 5.8~6.7 | 4~15 | 0.3~20 |
| Swivel Arm | 6~6.9 | |||
| Hexagon head | Normal | 6.9~7.1 | 11~15 | |
| Swivel Arm | 6.8~7.2 |

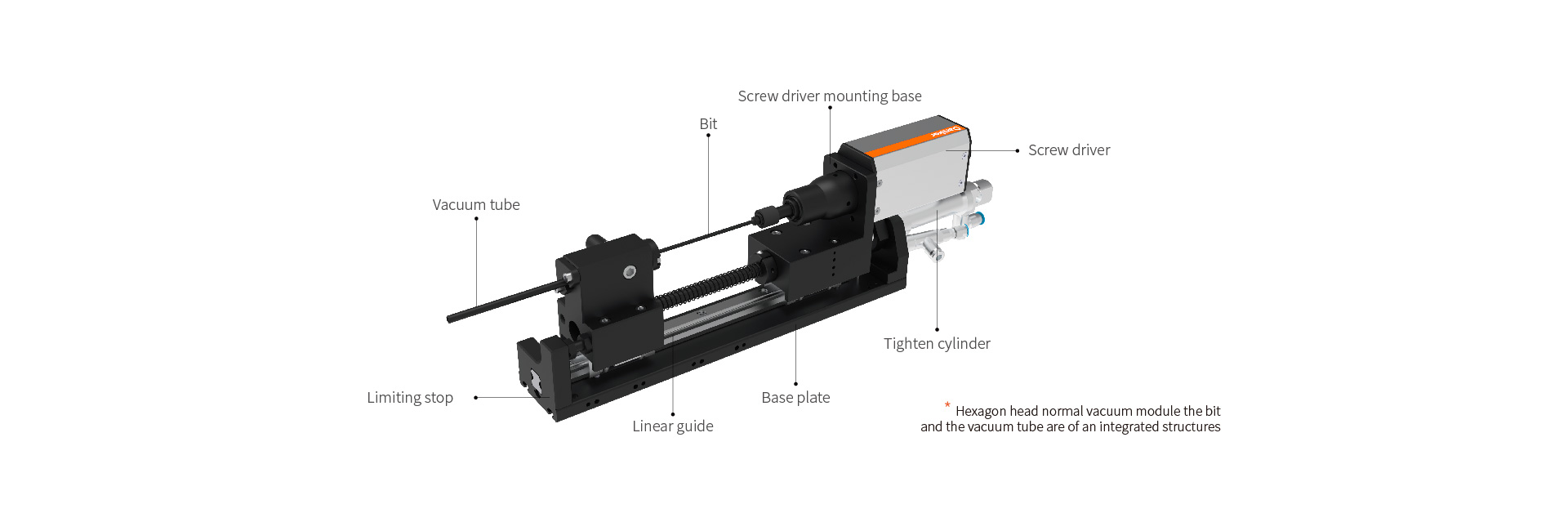

Conventional pick-up module system parameters
| Screw type | Nozzle type | Weight (excluding screw drivers and cables)/kg | Maximum cap diameter/mm | Torque range /Nm |
| Standard/Combination screw | None | 3.9~4.3 | 4~15 | 0.3~20 |
| Clamp nozzle | 6.4~7.4 | 11~15 | ||
| Hexagon head | None | 4.4~6.6 | 11~15 | |
| None | 4.4~6.6 | 15~20 | 20~35 |
* The above is the reference value, and the actual test shall prevail.
